Linshang LS230 Automotive Paint Thickness Gauge Automotive Paint Thickness Gauge LS230 Meter

1 Piece
MOQ
$115.00(>=1 Pieces)
Price
Linshang LS230 Automotive Paint Thickness Gauge Automotive Paint Thickness Gauge LS230 Meter
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Customized Support: OEM
Model Number: LS230
Power: Electronic
Operation Temperature: -40℃-50℃
Measuring Principle: Fe:Hall Effect / NFe: Eddy Current
Measuring Range: 0.0-2000μm
Resolution: 0.1μm:(0μm-99.9μm) 1μm:(100μm-999μm) 0.01mm:(1.00mm-2.00mm)
Accuracy: ≤±(3% Reading+2μm)
Unit: μm / Mil
Measuring Interval: 0.5s
Minimum Measuring Area: Diameter = 25mm
Minimum Curvature: Convex:5mm / Concave:25mm
Minimum Substrate Thickness: Fe:0.2mm / NFe:0.05mm
Basic Infomation
Model Number: LS230
Payment & Shipping Terms
Packaging Details: White Paper Box
Product Description
Overview

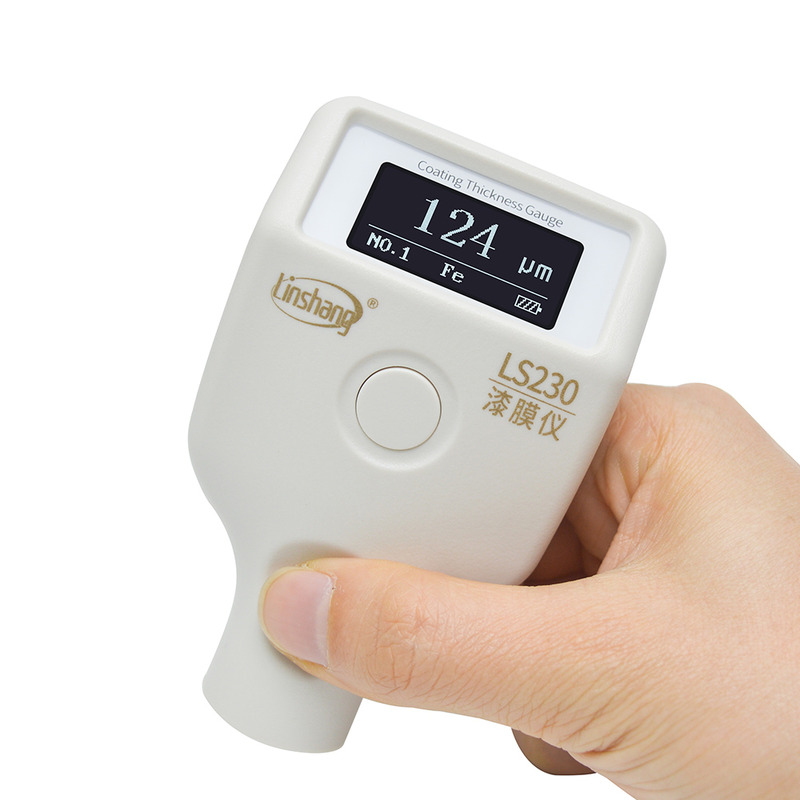

LS230 Car Paint Meter (Single OLED screen)
automotive paint meterautomotive paint thickness gaugeautomotive paint thickness gauge meter

LS230 is the first car paint meter in the ultra-low temperature environment of -40 ℃. This car paint meter uses a low temperature resistant OLED liquid crystal display. The LS230 car paint meter is professionally used for the detection of the paint film thickness of used cars. It adopts the two measuring principles of magnetic induction and eddy current, which can quickly measure the paint film thickness on metal substrates such as steel plates and aluminum alloys. It can also identify non-metallic substrate.
car paint checker car paint thickness meter car paint meter
Application
Features
1. Fast measurment, the test can be completed in 0.5 seconds.
2. The LS230 car paint thickness gauge uses low temperature resistant OLED liquid crystal to ensure the instrument can be normally used in cold environment.
3. Wear-proof ruby probe for long-term use with strong corrosion and abrasion resistance.
4. No calibration is needed just simple zero adjustment. Provide standard zero adjustment plates for zero adjustment.
5. One button with simple operation.
6. The LS230 car paint meter use iron and aluminum probe and can automatically identify the automotive substrate of steel plate, aluminum alloy and other materials. It can also automatically switch the measurement mode.
car paint checker car paint thickness meter car paint meter
7．"Fe", "NFe", "Fe/NFe" three measurement modes can be set for the LS230 car paint meter. Two units (μm and mil ) can be selected.
8. With temperature compensation function and digital function of analog signal end, the car paint meter can ensure the stability of the sensor signal.
9. Ultra-low power consumption, coupled with the design of automatic shutdown with no operation for 3 minutes to avoid frequent battery replacement and saves energy.
automotive paint meterautomotive paint thickness gaugeautomotive paint thickness gauge meter
Paramenters
Probe tip
Ruby
Measuring principle
Fe:Hall Effect / NFe: Eddy current
Probe type
Built-in integrated probe
Measuring range
0.0-2000μm
Resolution
0.1μm:(0μm-99.9μm); 1μm:(100μm-999μm); 0.01mm:(1.00mm-2.00mm)
Accuracy
≤±(3% reading+2μm)
Unit
μm / mil
Measuring interval
0.5s
Minimum measuring area
Diameter = 25mm
Minimum curvature
Convex:5mm / Concave:25mm
Minimum substrate thickness
Fe:0.2mm / NFe:0.05mm
Display
128×48 dot matrix low temperature resistant OLED
Power supply
2pcs of 1.5V AAA alkaline battery
Operation temperature
-40℃-50℃
Storage temperature
-50℃-60℃
Host size
101*62*28 mm
Weight(with battery)
79 g
Structure
Packing Details
Qualification and Standards
* GB/T 4956-2003 Non-magnetic Coatings on Magnetic Substrates-Measurement of Coating Thickness-Magnetic Method
* GB/T 4957-2003 Non-conductive Coatings on Non-magnetic Basis Metals-Measurement of Coating Thickness-Eddy Current
* DIN EN ISO 2808 Paints and Varnishes-Determination of Film Thickness
* JJG-818-2005 Verification Regulation of Magnetic and Eddy Current Measuring Instrument for Coating Thickness
Recommend Products
Company Profile
Shenzhen Linshang Technology Co., Ltd. (www.linshangtech.com) was established on June 16, 2008. The company adheres to independent design, research and development, production and sales of various measuring instruments. Builds its own brand. "Linshang" trademark successfully in 2010, At present, company have obtained 17 national patents and national high-tech enterprise certificates.
At present, the company's instrument are mainly divided into four categories: solar film measurement, optical transmittance, ultraviolet measurement, gloss and coating thickness measurement. Products include: Solar Film Transmission Meter, Spectrum Transmission Meter, Light Transmittance Meter, UV Energy Meter, UV Light Meter, Glass Thickness Meter, Gloss meter, Coating thickness gauge, Vacuum coating online thickness monitor.
Trademark and Knowledge Product Management System
National High-tech Enterprise Certificate
Software Copyright Registration Certificates
17 National Patent Certificates
CE Certificates for Multiple Products
FAQ
Q1: What’s your warranty?
A1: We provide 1 year warranty.

Q2: May I buy sample from you?
A2: Yes, you are welcome to place sample order to test our superior quality and service.

Q3: What about the quality of your products?
A3: We provide unrivaled quality-very rigorous testing process for incoming quality control, input process quality control, and final quality control for every piece. We follow QC test procedure to ensure the quality.

Q4: Do you have after-sales service?
A9: Yes, our instrument have professional After-sales Dept. If you have any technical problem or question with our goods, welcome to contact us.

Q5: Are you just trading company or facture?
A5: We are professional inspection instruments manufacturer, we can support you with the most competitive price, unrivaled quality and services.
