Home /Products/Film Thickness Gauge/Coating Thickness Gauge Meter Test Ferrous And Steel Bases ETG15FN ETG15FN

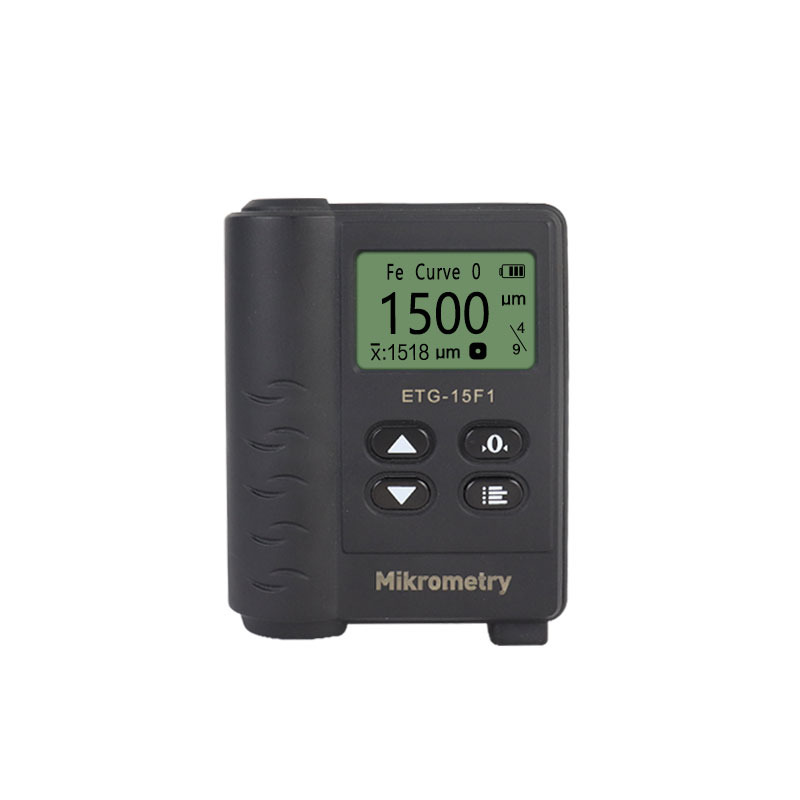

Coating Thickness Gauge Meter Test Ferrous And Steel Bases ETG15FN ETG15FN

1 unit
MOQ
Coating Thickness Gauge Meter Test Ferrous And Steel Bases ETG15FN ETG15FN
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Type: Handheld
Model Number: ETG15FN
Product Name: Coating Thickness Gauge Meter ETG15FN
Test Method: Magnetic Induction, Eddy Current
Data Memory: 500 Readings
Color: Gray
Weight: 110 G
Basic Infomation
Model Number: ETG15FN
Payment & Shipping Terms
Product Description
Products Description
Mikrometry Coating Thickness Gauge is an economical choice that provides the hi quality measure of the paint thickness of car.

Features:

* Very compact size with integrated probe.
* Quick one-hand operation. Place instrument on speci­men and see the measured value.
* Ready to measure immediately without calibration.
* Easy to perform zero-point correction provides correct measurement results for measuring applications with little changes in shape and substrate material. The one-point calibration function allows for an adaptation in cases of severe changes in shape or substrate materi­al and enables high-precision measurements in selected measurement ranges.
* Data transmitting to PC via USB cable.
* Statistic function allows for evaluation of a measurement series and display of the most significant characteristic
statistical values.
* Auto power off.
Product Paramenters
Test Method
Magnetic induction, eddy current
Measuring Range
0~1500μm (0 ~60 mil)
Resolution
0 ~ 999μm: 0.1μm
≥1000μm: 1μm
Accuracy
0 ~ 100μm: ± 1.5μm
101 ~ 1500μm: ≤ 1.5 %
Data Memory
Up to 1500 readings.
Display
Graphic LCD with backlight
Power Supply
1.5V*3 (AAA alkaline batteries). Life: approx. 80houres
Operating Temperature
0 ~ 50°C
Dimension
88 X 67 X 30 mm
Weight
120g
Packing & Shipping
1. We guarantee to ship goods out within 3~5 working datys after payment confirmation except holiday.
2. We ship by DHL, FEDEX, TNT and so on, according to your choice when placing orders.
Warranty
1. All items have 1 year guarantee. If your purchase do not meet mechantable quality, fitness for purpose or match the
description, we can make sure your issues are resolved.
2. For wrongly-shipped items, please contact us in 48 hours after delivery. We will arrange to deliver the correct items or return all your payment.
3. For defective or faulty products, please take photos or videos, we would resend or refund after confirmation.
Company Profile
About Us
Mikrometry Instrument Limited is a designer and manufacturer of height gauge, force and torque measurement products, portable
hardness tester and coating thickness gauge. Since our founding in 2007, our products have proven themselves in numerous
applications at companies in the automotive, machinery, electric product, film, medical device, textile, pharmaceutical, cosmetic,
packaging, food, and many other industries. We also offer optimized solutions for special requirements.

R & D

Mikrometry have more than 20 R& D engineers, and our products have more than 100 patents for inventions. From PCBA to firmware,
ID/MD. All the sensor and products are assembled and produced by Mikrometry.

Integrated Manufacturing

Mikrometry products (Include sensors and key devices) are done in-house. Integrated manufacturing helps ensure high quality
standards and allows us to maintain extensive stock for quick shipment.

Service & Support

We offer 7 x 24 hours online. And we have a technology team with more than 10 years experience, good technical skill, English
communication and project management.

FAQ:

Q1. You are manufacturer or trading company? A: We are manufacturer and exporter, our price is reasonable. Also we have great sales team providing professional service. Q2. Do you provide OEM/ODM services? A: We can do OEM/ODM. Q3. How does your factory do regarding quality control? A: Quality is priority. we always test one by one before produce or finished. We have got the CE, RoHS, so don't worry about quality
