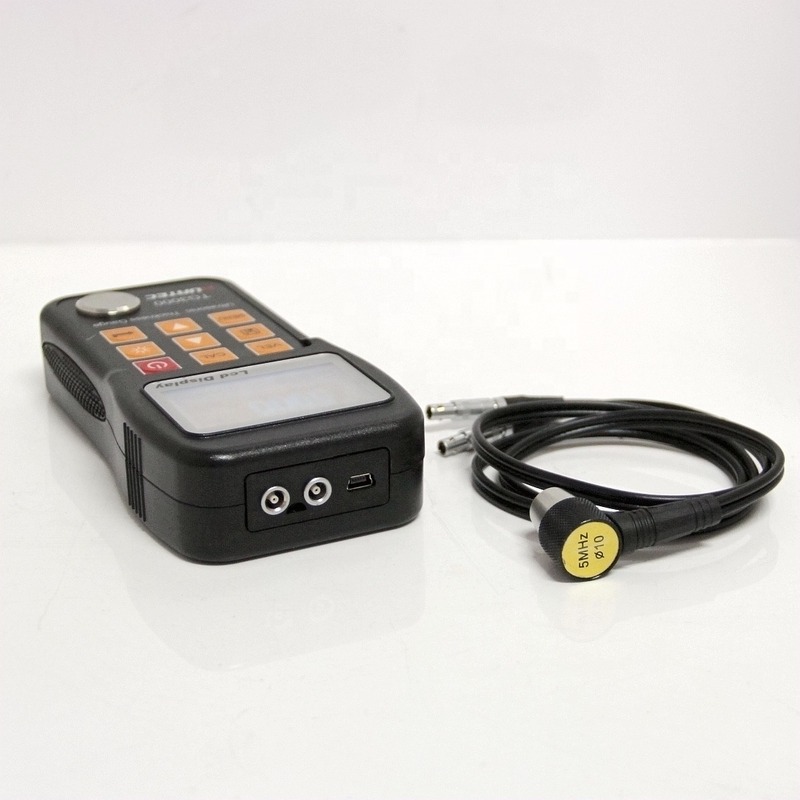

Ultrasonic Ultrasonic Gauge TG3300 Plastic/Metal Thickness Gauge Thickness Meter HUATEC Thickness Meter

Features

1.Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.

2.Transducer models are available for special application, including for coarse grain material and high temperature applications.

3.Probe-Zero function, Sound-Veloctiy-Calibration function.

4.Two-Point Calibration function.

5.Coupling status Indicator showing the coupling status.

6.Battery information indicates the rest capacity of the battery.

7.Auto sleep and auto power off function to conserve battery life.

8.Optional software to process the memory data on the PC.

9.Optional thermal mini-printer to print the measured data via RS232 port

Specifications

Display:    128×64 LCD with LED backlight.

Measuring range:  0.75mm~300.0mm (0.03inch~11.8 inch)

Sound velocity:   1000m/s~9999m/s (0.039~0.394in/µs

Display resolution:0.01mm or 0.1mm (lower than 100.0mm)

0.1mm (more than 99.99mm)

Accuracy:         ±(0.5%Thickness +0.02)mm, depends on Materials and conditions

Units:   Metric/Imperial unit seletable.

Lower limit for steel pipes:

5MHz probe: F20mm´3.0mm(F0.8´0.12 inch)

10MHz probe: F20mm´3.0mm(F0.6´0.08 inch)

Power Source:   2pcs 1.5V AA size, batteries.100 hours typical operating time(LED backlight off).

Communication:   RS232 serial port

Outline Dimensions:   150mm×74mm×32mm

Weight:   238 g

Four measurements readings per second for single point measurement,

Memory for up to 5 files(up to 100 values for each file) of stored values

Configuration for ultrasonic thickness gauge/tester TG-3300

Probe optional for ultrasonic thickness gauge/tester TG-3300(Appendix A):

HUATEC Group is a reliable manufacturer and supplier of testing instruments in Beijing China. HUATEC Group combines all the R/D and production advantage of all its own subsidiaries, takes advantage of its years marketing and sales experience in global market, contributes to offering most qualified competitive products and service to international markets.

HUATEC Group products are composed of all kinds of metal and non-metal testing equipments, such as portable hardness tester, micro hardness tester, shore durometer, vickers hardness tester, Rockwell hardness tester, Brinell hardness tester, portable X-ray flaw detector, mobile X-ray flaw detector, Real-time X-ray image flaw system, holiday detector, digital portable eddy current electrical conductivity meter, digital ultrasonic flaw detector, coating/painting thickness gauge, ultrasonic thickness gauge, vibration tester, surface roughness tester, profile projector, etc, and all of their accessories such as ultrasonic transducer, test block, IQI, lead screen, densimeter, film viewer etc.

We have more than 15 R&D engineers in our group company, who make sure the produced product to be best quality. And more than 10 new products will be developed every year.

Q1. How about your samples?

Yes, we can serve you our samples for your test (Freight collect). You also can get a refund of the freight cost when the bulk order is placed.

Q2. How much for the freight?

It depends on your area, we will use DHL, FedEx and EMS bulk service, it had discount as normal express service. And we can return freight while you place order.

Q3. Do you have discount for large quantities?

Yes, It not only depends on your order quantity, but also the item you booked.

Q4. What about delivery?

Prompt shipment after receipt of order confirmation for regular products.

We can offer the free samples

We can accept OEM/ODM

The mass production is accordance with the samples

We can packed the production well and safe.

We can answer your questions in time after sale
