Application
Widely used to measure the thickness of non-magneticmaterials(e.g.paint,plastic,porcelain enamel,copper.zinc,aluminium,chrome etc.)on magnetic materials(e.g.iron,nickle etc.)Often used to measure the
Features:
* It meets the standard of ISO2178. Suitable for the laboratory amd for use in harsh field conditions.
* Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time.
* Wide measuring range and high resolution.
* Digital display gives exact reading with no guessing or errors.
* The use of durable,long-lasting compone-nts,including a strong,light weight ABS-plastic housing assures maintenance free performance for many years. The housing has been carefully shaped to fit comfortably in either hand.
Product specification:
|
Display |
4 digits , 10mm LCD |
|
Principle |
F Magnetic Induction |
|
Resolution |
0 ~ 2000µm / 0 ~ 80 mil |
|
Range |
0.1µm (0 ~ 99.9µm) |
|
1µm (over 100µm) |
|
|
Accuracy |
±5%n or 5.0µm |
|
Operating Conditions |
Temperature:0~40ºC |
|
Humidity:<80%RH |
|
|
Power Supply |
4x1.5V AA (UM-3)Battery |
|
Dimensions |
161x69x32mm |
|
Weight |
250g(Not Including Batteries) |
|

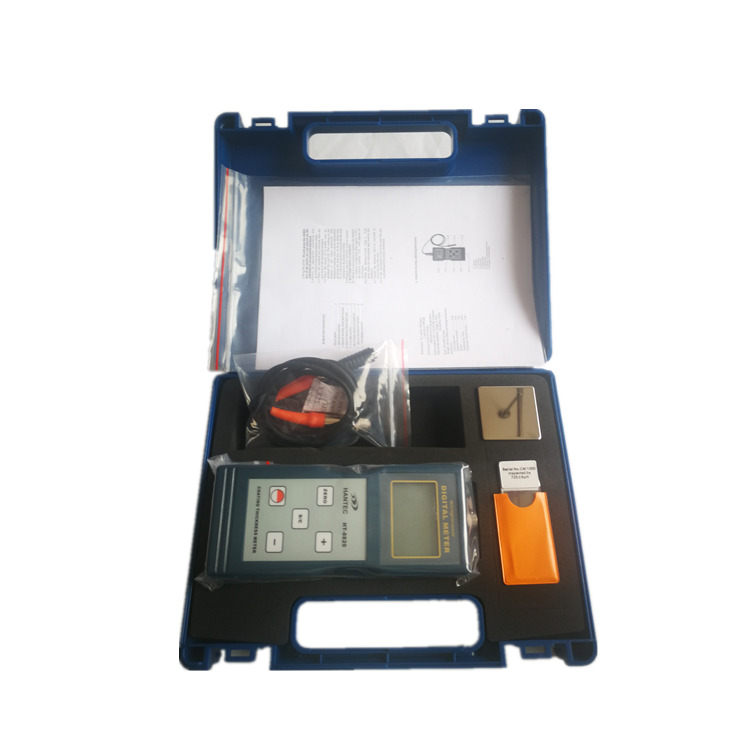

Standard Accessories |
Mian Unit |
|
Probe (F Type) |
|
|
Calibration Base (F) |
|
|
Calibration Foils |
|
|
Carrying Case |
|
|
Operation Manual |
