High precision industrial digital liquid crystal display automotive coating thickness gauge film coating thickness gauge

1.0 Sets
MOQ
High precision industrial digital liquid crystal display automotive coating thickness gauge film coating thickness gauge
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: DW313
Principle Of Measurement: Magnetic Induction And Eddy Current
Range: 0-10000 Um
Basic Infomation
Model Number: DW313
Payment & Shipping Terms
Product Description
Products Description

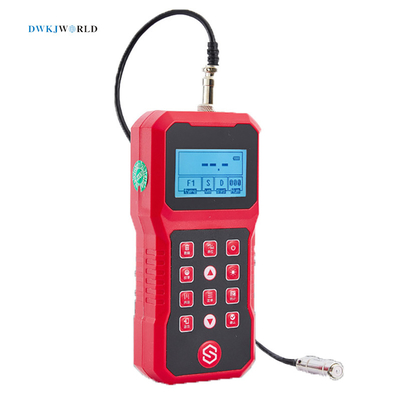

DW313 Coating thickness gauge
It can be used for thickness measurement of coating, paint layer, enamel layer, aluminum tile, copper tile, Babbitt tile,
phosphating layer, paper, and also can be used for thickness measurement of hull paint and attachment of underwater structure.The instrument can be widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields.
Product Paramenters
Product features
1.Magnetic and eddy current methods are used to measure thickness
2.Can be equipped with 10 kinds of probe F400, F1, F1/90°, F10, CN02, N1, CN02, N10, F5
3.The limit can be set: the measured value outside the limit can automatically alarm;A batch of measured values can be analyzed by histogram
4.LCD LCD display, switch backlight control
5.Have menu action
6.It has the function of communication with PC: it can transfer the measured values and statistics to PC for further processing of data
7.Has the error prompt function, through the screen display or the beep carries on the error prompt
8.There are two shutdown mode: manual shutdown mode and automatic shutdown mode
9.Adopt 2 No.5 batteries design, easy to replace
10.Adopt international 9-core socket;Standard USB interface, can communicate with the host computer through software
Technical parameters
Measure the original theory
Magnetic induction and eddy current
Probe connection
Split wire connection (replaceable)
Amount of routine
0-10000um (depending on probe)
Warm wet degree
0-40°C，20%RH~90%RH
The statistical work
Mean, maximum, minimum, number of tests, standard deviation
Job type
Direct mode and group mode
Measure type
Continuous measurement and single measurement
Upper and lower limit Settings
There are
Can deposit reserve force
500 measurements
Connected computer
Ability to connect to computer (optional)
Close the machine type
Manual and automatic
Electrical source
AA (size 5) battery
Details Images
name
number
Host
1
Iron base probe (FE)
1
The zero substrate
1
Standard specimens
1
AA battery (No. 5)
2
Packaging
1
Operational guidelines for school official cites use
1
Certificate of approval
1
Warranty card
1
