Product Description
BRIEF INTRODUCTION
* It meets the standards of both ISO2178 and ISO-2361 as well as DIN, ASTM and BS. Suitable for the laboratory and for use in harsh field conditions.
* The gauge can measure the thickness of non-magnetic coating layers on magnetic substrate.Such as: (aluminum, chrome, copper, enamel, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)..
* The gauge can measure the thickness of non-metals coatings layers covered on non-magnetic metals substrate. Such as: (enamel, rubber, paint, vanish, plastic anodic-oxide layer) covered on non-nagnetic metals substrate (aluminum, brass, zinc and nonmagnetic stainless steel).
Standard Delivery
Main unit(1500um).............1pc
| Technical Specification | |

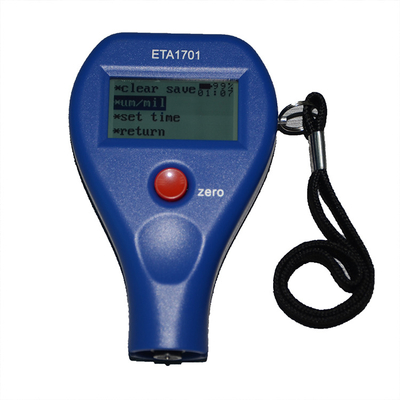

| Model No. | ETA1701 |
| Measuring principle | Fe/NFe |
| Measuring range (µm) | 0-1500µm |
| Accuracy | ±‹1-3% H+1›µm H refers to the thickness of testing piece |
| Minimum resolution (µm) | 0.1µm |
| Min curvature of the min area (mm) | Convex:5mm, concave:25mm |
| Diameter of the min area (mm) | Φ7 |
| Critical thickness of substrate (mm) | 0.5 |
| Dimensions | 100*65*25mm |
| Memory | 1173 |
| Power supply | AAA Alkaline battery |
| Standard configuration | Main Machine,4 calibration specimens (38µm,126µm,183µm,249µm) |
