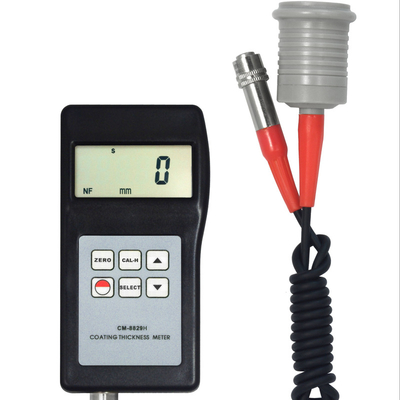

Coating Thickness Meter
Model No ; CM8829H ( 0-6000um)
Application:used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.in industries of petroleum,shipbuilding,power station,and machine manufacturing.
* Two measuring methods: magnetic induction (F) and eddy current (N)
* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the
coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.
| Operating Principle | Magnetic Induction / Eddy Current (F / NF) |
| Measuring Range | 0~6000 um |
| Resolution | 0.1 um / 1 um |
| Min. Radius Workpiece | F Type: convex 1.5 mm / concave 25 mm NF Type: convex 3 mm / concave 50 mm |
| Min. Measuring Area | 6 mm |
| Min. Sample Thickness | 0.3 mm |
| Accuracy | ± 1~3%n or ± 2.5 um |
| Auto Power Off | |
| Metric / Imperial | Convertible |
| Battery Indicator | Low Battery Indicator |
| Operating Conditions | Temp. 0~40 °C, Humidity: 10~90 %RH |
| Power Supply | 4 x 1.5 V AAA (UM-4) Battery |
| Dimensions | 126 x 65 x 27 mm |
| Weight | 81 g (Not Including Batteries) |
Standard Accessories:
1. Main Unit
2. Probe (F Type / NF Type)
3. Calibration Base Set (F Type / NF Type) CTG-BS
4. Calibration Foils CTG-CF (1 set, 4 pieces)
5. Carrying Case
6. Operation Manual
Optional accessories:
1 unit : 1kg. carton size: 26*26*8.5cm
20pcs : 14.5kg. carton size: 45*28*57cm
