Home /Products/Steel Thickness Tester/Nohawk Digital Paint Detector Metal Coating Thickness Gauge For Car NT-1S

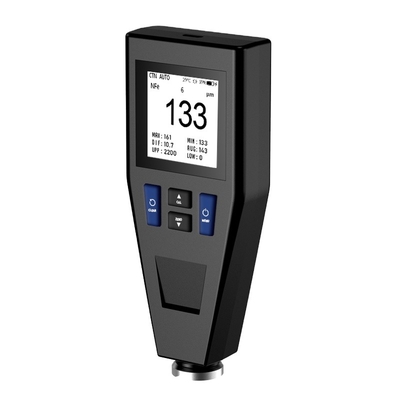

Nohawk Digital Paint Detector Metal Coating Thickness Gauge For Car NT-1S

1 Set
MOQ
$46.50(1 - 49 Sets) $43.50(50 - 499 Sets) $41.50(>=500 Sets)
Price
Nohawk Digital Paint Detector Metal Coating Thickness Gauge For Car NT-1S
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 12 Months
Customized Support: OEM, ODM
Model Number: NT-1S
Product Name: Coating Thickness Gauges
Key Words: Paint Thickness Meter
MOQ: 1pc
Principle:: Magnetic Induction/eddy Current
Measurement Range: 0-2000um
Error: ±(2.5%+2um)
Display Accuracy: Unit
Min. Substrate Thickness: 0.2mm/0.05mm
Min. Measurement Area Diameter: 20mm
Battery: 3.7V/750Mah Lithium Battery
Basic Infomation
Model Number: NT-1S
Payment & Shipping Terms
Packaging Details: Carton Package
Product Description


The coating thickness gauge has the characteristics of high measurement accuracy, high reliability, good stability, and easy operation. It is an indispensable testing instrument to control and ensure product quality. It is widely used in manufacturing, metal processing, chemical Commodity inspection and other testing fields.
Specification
Thickness Gauge Technical Parameters:
Item
Value
Principle
Magnetic induction/eddy current
Measurement range
0-2000um
Error
±(2.5%+2um)
Display accuracy
0.1um(0-99.9um); 1um( ≥100um)
Unit
um, mm, mils
Min.convex radius of curvature
5mm
Min.concave radius of curvature
25mm
Min. measurement area diameter
20mm
Min. substrate thickness
0.2mm/0.05mm
Calibration
probe calibration, zero calibration, multiple points calibration
Battery
3.7V/750Mah lithium battery
Charging voltage/current
5V/500mA
USB port
Micro B
Working climate
Temperature:0-50℃(32-122℉);humidity:20%-90%RH; no strong magnetic field; no strong electromagnetic interference
Storage condition
Temperature:-10-60℃(-14-140℉)
Dimension
110*50*21mm (4.33*1.96*0.83inch)
Material & weight
ABS plastic, silica gel, Plexiglass, weight:70g(3.24oz)
Standard configuration
Main instrument 1set, substrates 2pcs (Fe, nFe 1 pc each), calibration sheet (100um) 3pcs; cable 1pc, user manual 1pc, certificate
1pc, soft bag 1pc, packing box 1pc
Product Description
Our Advantages
OEM process Introduction

Warehousing Logistics

has an independent warehousing base. It integrates instrument research and development, It supports small batch spot delivery and mass customization.
Certifications
FAQ
1. Q: Does your company accept customization?
A: We do customizing service for our customers. OEM/ ODM is acceptable. Any logo and any color is up to you. English manual is
also available.
2. Q: Which shipping way can customers choose?
A: We can advise the suitable shipping way base on customer's order quantity.
For small quantity, it can be shipped by FedEx, DHL, TNT or EMS express.
For large quantity, it can be shipped by air or by sea.
3. Q: How to place an order?
a: Send us an inquiry.
b: Confirm your wanted product.
c: Confirm the price, freight cost and other details.
d: Complete the payment.
e: We start production and arrange the shipment.
f: Customer will receive the product.
