Customization LS225+F500 Paint Gauge Plating Thickness Tester For Screws Bolts Plating Plating Coating Thickness Plated LS225+F500 Plated

1 Piece
MOQ
$466.00(>=1 Pieces)
Price
Customization LS225+F500 Paint Gauge Plating Thickness Tester For Screws Bolts Plating Plating Coating Thickness Plated LS225+F500 Plated
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Customized Support: OEM
Model Number: LS225+F500
Power: Electronic
Product Name: LS225+F500 Plating Thickness Gauge
Measuring Principle: Magnetic Induction
Measuring Range: 0.0-500μm
Resolution: 0.1μm:(0μm - 99.9μm);1μm:(100μm - 500μm)
Repeatability: ≤ ± (0.8% Of Reading + 0.1μm) Test With Fixture
Accuracy: ≤±(2%reading+0.3μm) After Calibration Of 1-5 Points
Unit: μm / Mil
Measuring Interval: 1.5s
Minimum Measuring Area: Diameter: 7mm
Minimum Curvature: Convex:1.5mm / Concave:10mm
Basic Infomation
Model Number: LS225+F500
Payment & Shipping Terms
Packaging Details: Plastic Case
Product Description
Overview

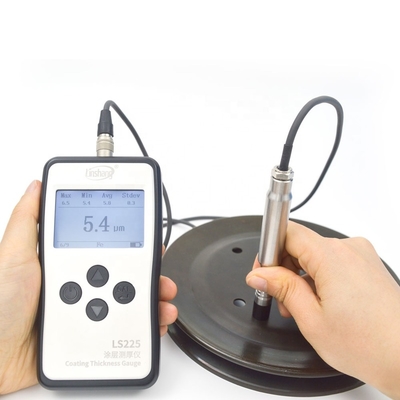

LS225+F500 Plating Thickness Gauge

LS225+F500 is a plating thickness gauge with separate host and probe. It consists of LS225+F500 multi-probe coating thickness gauge host and F500 probe.
LS225+F500 plating thickness gauge is specially used to detect copper, zinc, tin, chromium and non-magnetic coatings on iron and other ferromagnetic metal substrates. The plating thickness gauge has ultra-high measurement accuracy and repeatability. It can be used to measure the thickness of ultra-thin coatings below 10μm.
The LS225+F500 plating thickness gauge is particularly suitable for testing small-sized materials with a minimum measurement area diameter of only 7 mm. We provide professional test fixtures for users to buy, especially suitable for the measurement of thin coating thickness of small workpieces such as screws and bolts and various irregual shaped materials.
Application
Features
1. LS225+F500 plating thickness gauge use ultra-small probe, which is especially suitable for measuring coatings on small workpieces such as screws and bolts.
2. The probe adopts digital oscillation technology and high-speed ADC acquisition to ensure the ultra-high stability of the
plating thickness gauge. It can measure ultra-thin coatings.
3. Using advanced digital probe technology, digital signal processing is done directly on the probe. The probe is not easily
interfered and provides excellent test accuracy. Even if the temperature change does not affect the measurement, the data remains stable to ensure very good repeatability throughout the measurement process. Make sure to pass the inspection of Chinese authoritative metrology agencies.
4. Supports zero adjustment and multi-point calibration (up to 5 points). It is equipped with 7 pieces of standard films of
different thicknesses. The curve can be modified according to the standard film or the actual workpiece to make the measurement data more accurate.
5. With data statistics function, it can store up to 9 measurement values. The plating thickness gauge can automatically calculate the maximum, minimum, average and standard deviation of the measured data.
6. The hard probe ensures long-term effective use of the instrument.
7. Dedicated test fixtures are provided for users to purchase, which can make the measurement more convenient and eliminate the measurement errors caused by human factors.
8. Two languages can be switched -Chinese and English and two units can be switched(μm and mil). Customers can set the auto-off time within 1-9 minutes without any operation.
Paramenters
1. LS225 plating thickness gauge host parameters
Display
240×160 dot matrix LCD
Power supply
4pcs of 1.5V AAA alkaline battery
Operation temperature range
0℃-50℃
Storage temperature range
-20℃-60℃
Host size
148*76*26 mm (L*W*H)
Weight (include battery)
194g
2. F500 probe parameters
Measuring principle
Magnetic Induction
Measuring range
0.0-500μm
Resolution
0.1μm:(0μm - 99.9μm); 1μm:(100μm - 500μm)
Repeatability
≤ ± (0.8% of reading + 0.1μm) Test with fixture
Accuracy
≤±(2%reading+0.3μm) after calibration of 1-5 points
Unit
μm / mil
Measuring interval
1.5s
Minimum measuring area
Ø = 7mm
Minimum curvature
Convex:1.5mm / Concave:10mm
Minimum substrate thickness
0.1mm
Calibration
Support zero reference adjustment and 1 to 5-points calibration
Probe size
110*15 mm (Without connecting cable)
Probe weight (include battery)
81g
Qualification and Standards
(1) GB/T 4956-2003 Non-magnetic Coatings on Magnetic Substrates-Measurement of Coating Thickness-Magnetic Method
(2) DIN EN ISO 2808 Paints and Varnishes-Determination of Film Thickness
(3) JJG-818-2005 Verification Regulation of Magnetic and Eddy Current Measuring Instrument for Coating Thickness
Recommend Products
Company Profile
Shenzhen Linshang Technology Co., Ltd. (www.linshangtech.com) was established on June 16, 2008. The company adheres to independent design, research and development, production and sales of various measuring instruments. Builds its own brand. "Linshang" trademark successfully in 2010, At present, company have obtained 17 national patents and national high-tech enterprise certificates.
At present, the company's instrument are mainly divided into four categories: solar film measurement, optical transmittance, ultraviolet measurement, gloss and coating thickness measurement. Products include: Solar Film Transmission Meter, Spectrum Transmission Meter, Light Transmittance Meter, UV Energy Meter, UV Light Meter, Glass Thickness Meter, Gloss meter, Coating thickness gauge, Vacuum coating online thickness monitor.
Trademark and Knowledge Product Management System
National High-tech Enterprise Certificate
Software Copyright Registration Certificates
17 National Patent Certificates
CE Certificates for Multiple Products
FAQ
Q1: What’s your warranty?
A1: We provide 1 year warranty.

Q2: May I buy sample from you?
A2: Yes, you are welcome to place sample order to test our superior quality and service.

Q3: What about the quality of your products?
A3: We provide unrivaled quality-very rigorous testing process for incoming quality control, input process quality control, and final quality control for every piece. We follow QC test procedure to ensure the quality.

Q4: Do you have after-sales service?
A9: Yes, our instrument have professional After-sales Dept. If you have any technical problem or question with our goods, welcome to contact us.

Q5: Are you just trading company or facture?
A5: We are professional inspection instruments manufacturer, we can support you with the most competitive price, unrivaled quality and services.
