Germany thickness gauge QuaNix 4500
(Menu is Chinese Language)
Description:
With the QNix® 4500, precise measurements on steel, iron and non-ferrous metals are simply perfect. Switch between the measuring procedures by simply pressing the button.
No calibration required. High precision over the entire measuring range: Fe3000μm and NFe 3000μm.
The sensitive QNix® 4500 measuring probe is fully integrated into this extremely small, light and handy gauge-optionally available as Cabel Probe. Its readable LCD informs about readings, battery condition, mode of operation and serial number.
Product Advantages:
1. Gauge for standard applications-easy,safe and fast measurements.
2. One-hand operation. Only one button.
3. No calibration.
4. Automatic On/Off.
5. High precision over the entire measuring range: Fe 0-5000μm and NFe 0-3000μm.
6. Broad spectrum of use for non-destructive measurements on steel, iron and non-ferrous metals such as aluminum, zinc, copper and brass.
7. Proven technology: Hall sensor and Eddy Current technology.
8. Acoustic signal confirms taking of a measurement.
9. Wear-proof ruby probe tip for long-term use.
Optimal LCD-Display:
1. Large clear numbers for optimum readability.
2. Precise display of readings, battery condition, mode of operation and serial number.
3. Backlit display.
Technical Data:
|
Measuring Principle
|
Two magnetic measuring principles: Fe: Magnetic-Flux/Hall Effect ref Fe* NFe: Eddy Current (QNix 4500 only) |
||||
|
Standards & Regulation
|
DIN EN ISO 2808, ISO 2178, ASTM B 499, ASTM D 7091 (QNix® 4500 only: ISO 2360)) |
||||
|
Probe Type |
Integrated or - optional - Cable Probe with 1 m cable |
||||
|
Measuring Range
|
Fe: 0.0 - 3000 um NFe: 0.0 - 3000 um (QNix 4500 only ) |
||||
|
Metric System µm/mil |
Yes |
||||
|
Measuring Interval |
Single measurement: 850 ms |
||||
|
Display Metric |
from 0.0 - 999 in um, from 1000 um in mm |
||||
|
Resolution
|
1 μm in the range up to 999 um, 0.01 mm in the range from 1 mm |
||||
|
Accuracy referred to Automation reference standard
|
|
4200 |
4200 |
4500 |
4500 |
|
3mm |
5mm |
3/3mm |
5/mm |
||
|
Fe < 2mm |
1 |
1 |
1 |
1 |
|
|
Fe > 2mm |
1 |
2 |
1 |
2 |
|
|
NFe< 2mm |
|
|
1 |
1 |
|
|
NFe>2mm |
|
|
1 |
2 |
|
|
1 = +/- (3%* + 2um) ; 2 = +/- (5%* + 2um) |
|||||
|
Minimum Measuring Area |
Diameter 25 mm |
||||
|
Minimum Curvature |
convex: 5mm, concave: 25mm |
||||
|
Minimum Substrate Thickness
|
Fe: 0.2 mm NFe: 0.05 mm (QNix 4500 only) |
||||
|
Display |
Graphic-LCD |
||||
|
Temperature Range |
0 - 50 ℃(32 - 122 °F) |
||||
|
Permitted Storage Temperature |
-10 - 60 ℃ (14 - 140 °F) |
||||
|

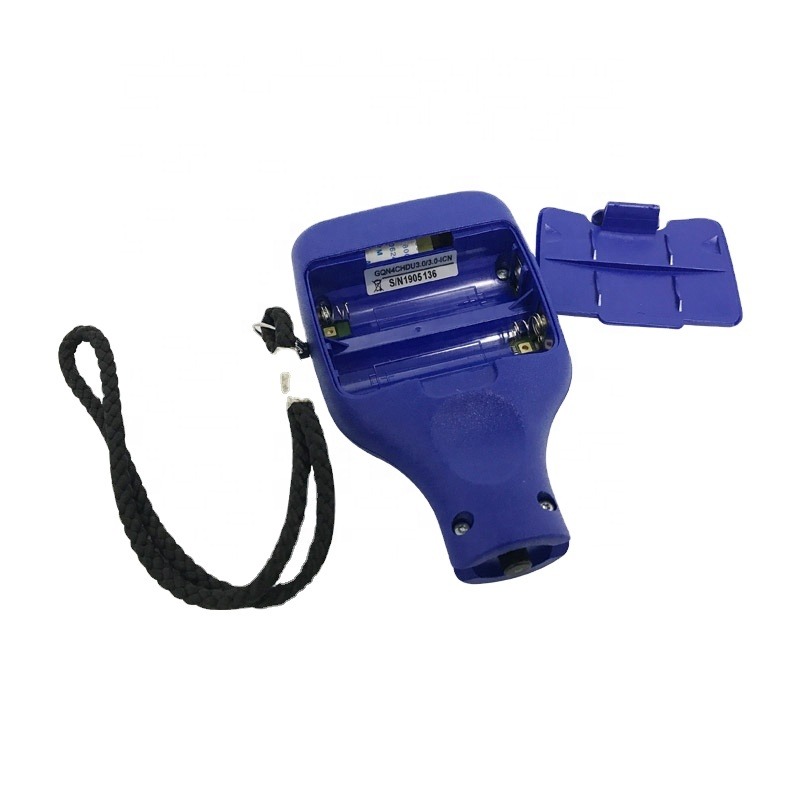

Power Supply |
2 x Batteries: 1.5 V (Type AA alcaline) |
||||
|
Dimensions (L x W x H in mm) |
100 x 60 x 27 (gauge with integrated probe) |
||||
(1) * of the measurement
(2) Fe* : Measuring of non-ferromagnetic coatings on ferromagnetic substrate, for example measuring on steel- or iron-substrates.
(3) NFe* : Measuring of non-ferromagnetic and electrically non-conductive coatings (insulating coatings) on non-ferromagnetic and electrically conductive
substrate, for example measuring on aluminum-, zinc-, brass- and certain stainless ( high-grade ) steel-substrates.
