Product Description

This is a ecomomic dry film thickness gauge which can measure both non-magnetic coatings on steel and insulating coatings on non-ferrous metals.(Such as aluminum, chromium, copper, rubber, paint, etc.) and non-magnetic metal substrates (such as copper, aluminum, aluminum, etc.) on non-magnetic coatings such as copper, iron, alloy and hard magnetic steel, Zinc, tin, etc.) on the thickness of non-conductive coating (rubber, paint, plastic, etc.)

BGD 540 probe can work in the electromagnetic induction and eddy two principles, in the automatic mode (AUTO), the two principles can be measured according to the type of matrix conversion, but also through the menu for automatic mode and non-automatic mode conversion.

Features: Menu operation system

◆ Two measuring mode：CONTINUE and SINGLE mode
◆ Two working Mode：DIRECT and GROUP mode
◆ Statistic Display：AVG, MAX, MIN, NO., S.DEV
◆ One point calibrating, two points calibrating and basiccalibratingeasily
◆ Memory for 400 readings（80 DIRECT and 320 GROUPreadings）
◆ Delete single readings and all group readings easily
◆ High alarm and Low alarm for all working mode
◆ Low battery, error indication
◆ USB interface for PC software (windows 98/2000/xp/vista)
◆ Can set up automatic shutdown function

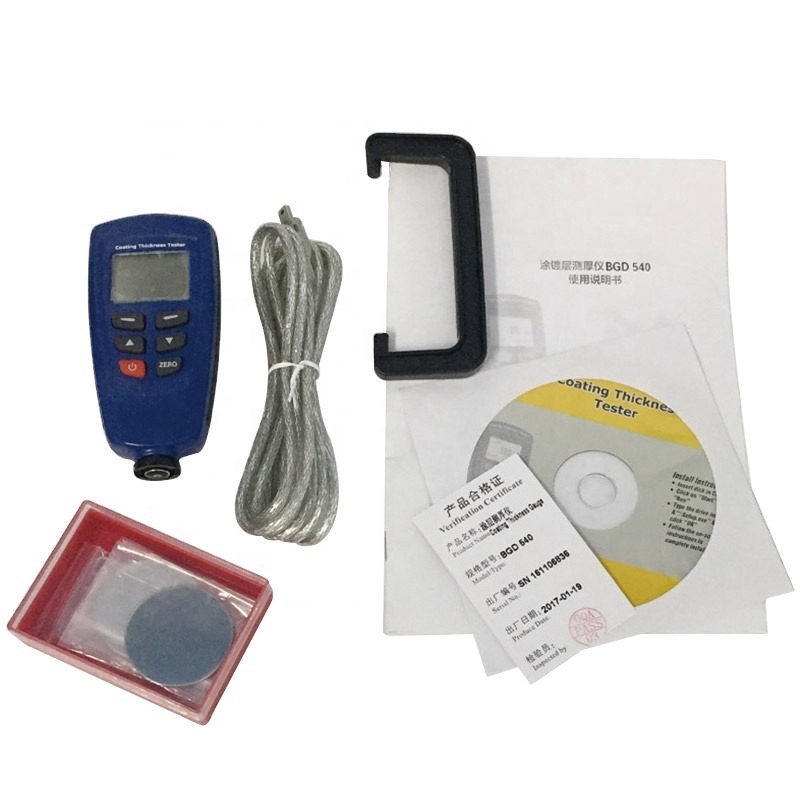

◆ Annex list: User's Manual × 1; Warranty card × 1; AAA 7 battery × 2; Ferromagnetic base × 1; Aluminum base × 1;Calibration sheet × 3; USB cable × 1; software CD × 1;portable tool box * 1

Working Principle	magnetic induction
Range	0~1250um/0~49.2mils
Erro	0~850um(±3%+1um) 850~1250um(±5%) 0~33.46mils(±3%+0.039mils) 33.46~49.21mils(±5%)
Accuracy	0~50um(0.1um) 50~850um(1um) 850~1250um(0.01mm) 0~1.968mils(0.001mils) 1.968~33.46mils(0.01mils) 33.46~49.21mils(0.1mils)
Min measure curve diameter	1.5mm
Min measure area	7mm
Min thickness of sabstrate	0.5mm
Temperature	0~40 C(32~104 F)
Humidit	20~90%RH
Size	113.5 x 54 x 27 mm
