ZD-410 T-Gauge Rock Thickness Tester/Floor Thickness Detector/Concrete Slab Thickness Gauge 200000 Test Points

1.0 Sets
MOQ
ZD-410 T-Gauge Rock Thickness Tester/Floor Thickness Detector/Concrete Slab Thickness Gauge 200000 Test Points
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 18 Months
Customized Support: OEM
Model Number: -
Item: ZD-410 Board Thickness Tester
Type: Concrete Floor Slab Thickness Detector
Test Scope: 20mm~450mm
Permissible Error: 20 ~ 200 Mm
Permissible Error High Range: 201~ 4500 Mm
Data Storage Capacity: 200000 Test Points
Power Supply: Intergrated Batteries Can Work More Than 26hrs
USB Cable: Yes
Display Resolution: 320*240
Basic Infomation
Model Number: -
Payment & Shipping Terms
Packaging Details: Carton for ZD-410 rock thickness testing/floor thickness detector/concrete slab thickness
Supply Ability: 500 Set/Sets per Month floor slab thickness gauge
Product Description
Product Description

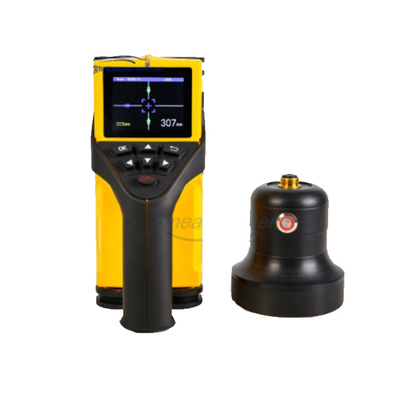

ZD-410 concrete floor slab thickness gauge
The ZD-410 integrated floor thickness gauge is mainly used for non-destructive testing of the thickness measurement of concrete structures or other non-ferromagnetic media, such as: measuring the non-ferromagnetic thickness of cast-in-situ floor slabs, walls, beams, columns, wood and ceramics; adopting receiving The unique design of the combination of the probe and the host, only needs to test the transmitting probe on the corresponding surface (floor slab, etc.) to measure the non-ferromagnetic thickness value.
Specification
Place of Origin
Liaoning, China
Brand Name
OEM
Item
ZD-410 Board Thickness Tester
Type
Concrete Floor Slab Thickness Detector
Test scope
20mm~450mm
Permissible error
20 ~ 200 mm
Permissible error high range
201~ 4500 mm
Data storage capacity
200000 test points
Power supply
Intergrated Batteries can work more than 26hrs
USB cable
Yes
Display resolution
320*240
Packing & Delivery
1. Main Unit
2. Sensor
3. Singal cable
4. USB cable
5. Wireless Intercom
6. Extend bar
7. Software
8. Carry case
9. Manual
10. packing list
11. Warranty card
Company Profile
Dalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.
