GM100 Coating Ultrasonic Thickness Gauge GM100

1 Unit
MOQ
$108.00(1 - 49 Units) $96.00(50 - 99 Units) $89.00(>=100 Units)
Price
GM100 Coating Ultrasonic Thickness Gauge GM100
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Customized Support: OEM, ODM
Model Number: GM100
Product Name: Ultrasonic Thickness Gauge
Display: 4-digital LCD Display
Minimum Display Unit: 0.1mm
Measure Range: 1.2 To 225.0 Mm (steel
Accuracy: +/- (1%H+0.1)mm H Denotes The Measured Thickness.
Sound Velocity Range: 1000 To 9999 M/s
Operation Temperature: 0℃~40℃
Power Supply: 3*1.5V AAA Alkaline Batteries
Weight: 202g
Working Frequency: 5MHz
Basic Infomation
Model Number: GM100
Payment & Shipping Terms
Packaging Details: coating thickness gauge could be packed in carton.
Supply Ability: 1000 Unit/Units per Week
Product Description
Product Description

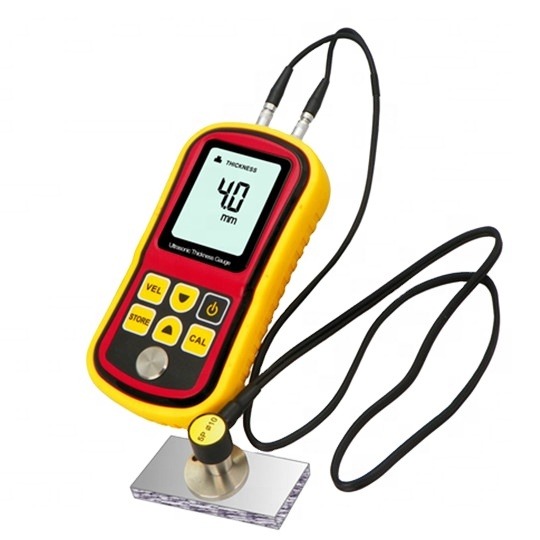

This ultrasonic thickness gauge is an intelligent handhold product, which adopts ultrasonic measuring principle, and is controlled by micro processor, provides quick and precise measurement of thickness for most of industrial material.
This unit is widely used in various precise measurement for different hardware / parts in industrial realm; one of its important application is to monitor the level of thickness-decreasing during operation of various and pressure container.
1. Auto calibration to assure the accuracy.
2. Auto linear compensation: this advanced software progr- am enhances the precision by correcting the non-linear accuracy of transducer
3. Coupling status indication: Observing the coupling icon to learn if the coupling is accomplished or not.
4. 10 thickness measurement storage and recall function available, which facilitates the height work or working in wild area.
5. Sound velocity measurement: With a given thickness by a sample hardware to measure the sound velocity, which avoid the further conversion or consultation of the table.
6. 12 sound velocity for different material which also adjus- table.
7. Low battery indication
8. Auto power off mode designed to conserve battery life.
9. More than 10000 times long lift keys.
10. The unit has a special memory that retains all of its setting even when the power is off.
Details Images
Standard packing & Parts description:
Main unit-1PCS
Transducer: ( 10mm 5MHz ) 1PCS
Coupling agent: 1PCS 50ml
4 mm Sample block: 1PCS
Optional accesseries: ( 10mm 2.5MHz ) 1PCS
Specification
Display
 4-digital LCD display
Minimum display unit
 0.1 mm
Working frequency
5MHz
Measuring range
 1.2 to 225.0mm (steel)
Minimum limit for tube measuring
φ 20*3mm (steel)
Accuracy
 +/- (1%H+0.1)mm H denotes the measured thickness.
Sound velocity range
 1000 to 9999 m/s Measuring sound velocity with a given thickness:
measuring range
1000 to 9999 m/s. When the given thickness over 20mm, the accuracy is
+/-1%; when the given thickness less than 20mm, the accuracy is+/-5%
Operation temperature
 0℃ to 40℃
Power supply
 3*1.5V AAA alkaline batteries
Operation current
Normal operation current 50mA
With Backlight turn on current 120mA
Stand-by current: 20uA
Size
 72*146*29mm
Weight
 202g
