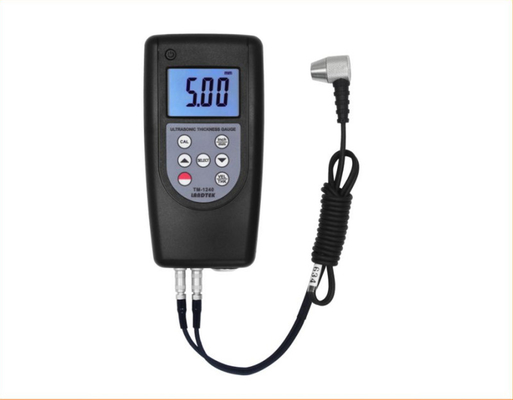

Ultrasonic Thickness Gauge TM-1240
Used for measuring thickness and corrosion of pressure vessels,chemical equipment, boilers,oil storage tanks,etc.in industries of petroleum, shipbuilding,power station,and machine manufacturing.
| Display | 4 Digit, 10 mm LCD |
| Operating Principle | Ultrasonic |
| Measuring Range (metric / Imperial) | 0.75~400mm (45# steel) (Depend on Probe) |
| Battery Indication | Low Battery Indication |
| Sound Velocity | 1000~9999 m/s |
| Lower Limit Steel Pipes | 15 x 2.0 mm 20 x 3.0 mm determined by transducer |
| Calibration Block | Included |
| Resolution | 0.1mm / 0.01mm / 0.001inch |
| Accuracy | ± (0.5%n + 0.1) |
| Automatic memory material code and the value of sound velocity | |
| Power off | Auto Power off & Manual Power Off |
| Operating Conditions | Temperature: 0~40 °C, Humidity: < 85 %RH |
| Power Supply | 4 x 1.5 V AAA (UM-4) Battery |
| Dimensions | 140 x 72 x 34 mm |
| Weight | 185 g (Not Including Batteries) |
Standard Accessories:
1. Main Unit
2. 5M/ 8 Standard Sensor
3. Coupling Agent
4. Carrying Case
5. Operating Manual
Optional Accessories:
1. 6M / 6 mm thin Material Probe : Measuring range (steel): 1.0~50.0 mm Operating temperature: -10~60°C
2. 5M /12 mm High Temperature Probe: Measuring range (steel): 1.0~225.0 mm (normal temperature) Measuring range (steel) : 4.0~100.0 mm (high temperature) Operating temperature: -10~300°C
3. Curved Surface Probe
4. USB, RS-232C data cable with software
5. BT data output with software
1 unit is 1kg. carton size: 26*26*8.5cm
20pcs is 14.5kg. carton size: 45*28*57cm
ship by DHL, FEDEX , UPS, AIR, SEA
One year after service, supply service forever
