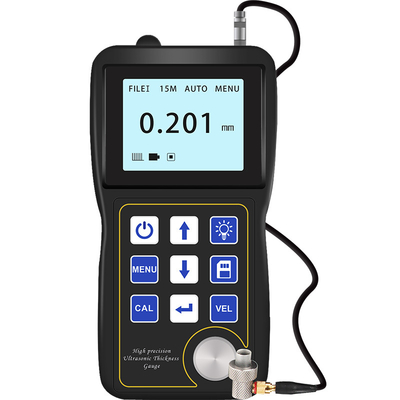

UT700 Ultrasonic Thickness Gauge Digital Steel Ultrasonic Thickness Meter With High Frequency Single Crystal Probe

Product Overview

  UT700 ultrasonic thickness gauge is equipped with single crystal high-frequency probe, which can measure the thickness of ordinary thin parts, and the minimum thickness can reach 0.15mm The measurement range is 0.15-20mm.
  The instrument is equipped with a 15M high-frequency single crystal probe, and the internal part of the probe is an imported chip, so that the measured value can be accurate to 0.001mm, and the output value is fast and the repeatability is relatively high. It is an ideal instrument for measuring thin parts.

Product Features

  1. High frequency single crystal probe can be used to realize the function of measuring ultra-thin parts.

  2. The "echo-echo" ultrasonic thickness measurement technology is adopted to realize the thickness measurement through the coating.

  3.The display resolution is 0.001mm,and the measurement range is 0.15-20mm.

  4. LCD contrast is adjustable, 128*64 dot matrix LCD display, with LED backlight,which can be used in various light environments.

  5. The USB interface can be used to transfer data to the computer.

Basic Principles

  The principle of ultrasonic thickness measurement is similar to that of optical wave measurement. The ultrasonic pulse emitted by the probe reaches the measured object and propagates in the object. When it reaches the material interface, it is reflected back to the probe. The thickness of the measured material is determined by accurately measuring the time of ultrasonic propagation in the material.

  The instrument adopts the "echo-echo" technology to remove the coating thickness on the surface of the workpiece and measure the net thickness of the body. Due to the use of single crystal thickness probe, the lower limit of the measurement range can reach 0.15mm.

Probe Selection

Product Technical Parameters

Standard configuration
