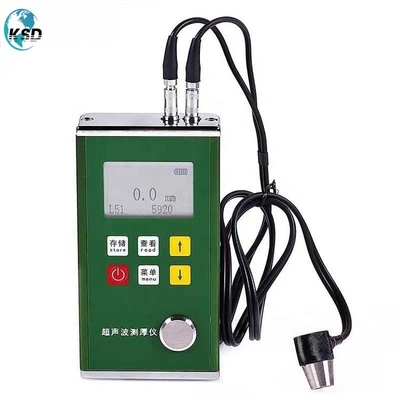

Ultrasonic thickness gauges perform thickness measurement based on the principle of ultrasonic pulse reflection. When the ultrasonic pulse emitted by the probe reaches the interface of the material through the object to be measured, the pulse is reflected back to the probe, and the measured ultrasonic pulse is determined by accurately measuring the time that the ultrasonic wave propagates in the material. The thickness of the material.
technical parameter
|
project name |
Leeb332 |
|
Indication error |
±( 1%H+0.1 ) mm H is the actual thickness of the measured object |
|
Measuring range |
0.75 ~ 350mm (steel, determined by the probe, the standard probe range is 1 ~ 250mm ) |
|
display resolution |
0.01mm |
|
Sound speed range |
1000 ~ 9999m/s |
|
storage |
2000 groups |
|
Use environment |
-10 ~ 60 ℃ (non-high temperature probe) -10 ~ 300 ℃ (high temperature probe) |
|
PC communication |
have |
|
power supply |
AA type alkaline batteries 2 Section |
|
operating hours |
100 hours |
|
Shell material |
metal shell |
|
Dimensions |
130*70*25 mm |
|
weight |
450g |
|
The standard configuration |
Main unit, L51 probe, 2 alkaline batteries , couplant |
|
Optional accessories |
Various probes, couplant, printing paper |
|
1 |
The product shall be guaranteed free of charge within 12 months and maintained for life from the date of acceptance by the user. During the warranty period, if there is any non-human quality problem, we will be responsible for free repair. If the loss caused by improper use of users or the product exceeds the warranty period, we will be responsible for repair and only properly charge material fees. |
|
2 |
During the free warranty period, the maintenance personnel shall respond within 12 hours after receiving the maintenance notice and give solutions within 24 hours. |
|
3 |
We provide debugging and training services free of charge. |
