Product introduction:

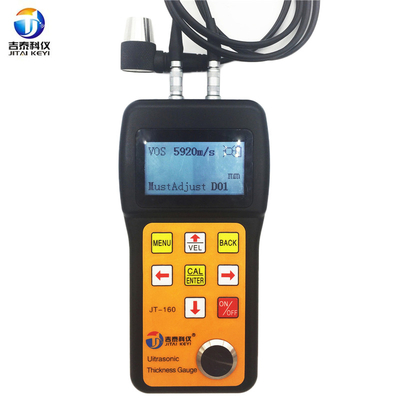

Ultrasonic Thickness Gauge measuring with ultrasonic wave, is applicable for measuring the thickness of any material in which ultrasonic wave can be transmitted and reflected back from the other face.
The gauge can provide quick and accurate measurement to various work pieces such as sheets of board and processing parts. Another important application of the gauge is to monitor various pipes and pressure vessels in production equipment, and monitor the thinning degree during using. It can be widely used in petroleum, chemical, metallurgy, shipping, aerospace, aviation and other fields.
Our advantage
1.We have our own factory with competitive price
2.Quality is our culture
3.time is gold,we have professional team produce the product with short time.
4.with us your money in safe
5.We provide professional training online with our own engineer
6.24 hour free service for consultation
Specifications | Thickness Tester |
Display | 128*64 LCD with LED backlight |
Measuring Range | (0.75~700)mm(Steel)/(0.03inch-27.6inch) |
Velocity Range | (1000~9999) m/s |
Resolution | 0.001mm |
Measuring accuracy | ±(0.5%H+0.04mm);H is thickness value |
Measurement cycle | Single point measurement 6 times/per |
Calibration Function | Zero calibration and two-point calibration |
Lower limit for steel pipes | 5MHz probe: 20mm*3.0mm (0.8 0.12 inch) 7MHz probe: 15mm*2.0mm (0.6 0.08 inch) |
Power Source | 2pcs 1.5V AA size |
Standard configuration:
No | Name | Quantity |
1 | Main Unit | 1 |
2 | Standard Probe(5MHz,D10mm) | 1 |
3 | Couplant | 1 |
4 | ABS Case | 1 |
5 | Product Certificate | 1 |
6 | Warranty Card | 1 |
7 | Manual | 1 |
8 | 1.5V AA size | 2 |
-Suitable for measuring metal (such as steel, cast iron, aluminum, copper, etc.), plastic, ceramic, glass, glass fiber and other any good conductors of ultrasonic thickness.
-Can be equipped with a variety of different frequency, chip size, double crystal probe use.
-Have probe zero calibration, a two-point calibration function, can be automatically on system error correction.
-Thickness can be known the sound velocity measurement, in order to improve the accuracy of measurement.
-With LED backlight, convenient to use in dark environment.
-With automatic power saving function dormancy, automatic shutdown, etc.
-Small, portable, high accuracy, suitable for bad operating environment, vibration, impact resistance and electromagnetic interference.
