Home /Products/Ultrasonic Depth Gauge/ST-4D Ultrasonic Color Waveform Corrosion Thickness Gauge (A-scan) Sonostar

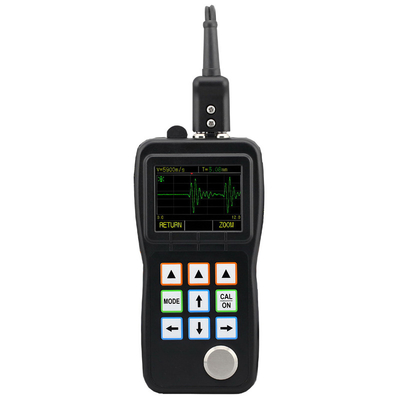

ST-4D Ultrasonic Color Waveform Corrosion Thickness Gauge (A-scan) Sonostar

1 Set
MOQ
ST-4D Ultrasonic Color Waveform Corrosion Thickness Gauge (A-scan) Sonostar
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: Sonostar
Warranty: 1 Year
After-sale Service: Return And Replacement
Instrument Classification: Class II
Type: Ultrasound-Assisted Materials
Basic Infomation
Model Number: Sonostar
Payment & Shipping Terms
Product Description
Feature:
With work mode of E-E (echo-echo) and function of penetrating the coating
Display Screen: 320×240 dot matrix, 2.4 inch color screen.
A scan snapshot
Zero passage measurement
Adjusted gain
Biggest/minimum value caught
Difference/cut rate model
High/low limit alarm
The ultrasonic thickness gage uses dual element transducers for corrosion applications. It offers many basic features such as Min/Max Mode that measures and recalls the minimum thickness at a fast 20 readings per second, Freeze Mode to instantly capture critical thickness, and Zero Compensation, A-scan display for echo-echo measurement.
Measurements from one side
Ultrasonic thickness gages make instant digital measurements by transmitting sound into a material from one side, making it unnecessary to cut the corroded part.
Lightweight and pocket-size
These handheld gages are small enough to fit in a toolbox or inside your pocket. They are ideal for quick inspections in hard-to-reach areas.
Color-coded keypad
You can directly access many important measurement features for time-saving operation. Strategically located keys are grouped together by color for easy operation.
Large OLED display
The large numerals make it easy to read thickness measurements.
SPECIFICATION:
Thickness range: 0.6 mm - 508 mm, ( 0.008 - 20 inches )
depending on material, temperature and transducer selection
Material Velocity Calibration Range: 500 - 9999 m/s (0.0197 - 0.3937 in/uS )
Battery type: 2 "AA" Alkaline
Battery life: Up to 35 hours
Color Display: 320x240 pixels, 2.4” high resolution OLED display
Display contrast: 10000:1
Information displays: LOS, min, max, large reading while displaying min at
the same time, velocity, zero, calibration, units, freeze, unfreeze, % battery life
remaining, gain - low, std, high, echo to echo symbol
Resolution: 0.01 or 1mm . (0. 001" or 0.01”)
Units: English/Metric
Gain: Low, Standard and High for varying test conditions
Measurement rate: 4, 8, 16 Hz refresh
Differential Mode: Displays the difference from the actual
thickness measurement and a user entered reference value
Alarms: Minimum/Maximum depth, beeps and display flashes as well as keypad illumination
Shut off: Manual or Auto, time out (user programmable from 5,10,20 minutes)
Fast Scan Min/Max mode: Displays minimum or maximum thickness value
Freeze mode: Freezes display to hold onto last reading
Scan mode: Displays minimum or maximum thickness value
Differential Mode: Displays the difference from the actual thickness measurement and a user
entered reference value
Alarms: Minimum/Maximum depth
Keypad: Color Illuminate , easy setup and operate
Waveform: Color A-scan Waveform display
Gain Adjust: low, medium and high variable adjustment of gain
Rectification Modes: A-San Shot
Echo to Echo: Measures the metal thickness only (ignore paint and coatings)
Data logger: 100,000 thickness data logger with ID point in linear or grid files ( 400 files)
Output: USB 2.0 full speed connector. DataView report software
Size: 153mm) (L) 76mm) (W) x 1.25" (37 mm) (H)
Weight: 280 g
Temperature: Gage Operating: -10° C to 50° C
Standard Package includes:
Ultrasonic thickness gage
- 5MHz, 10 mm diameter transducer
- operational manual,
- probe cable,
- couplant ,
- certificate,
- hard carrying case
Warranty: 2 year warranty on parts and labor
