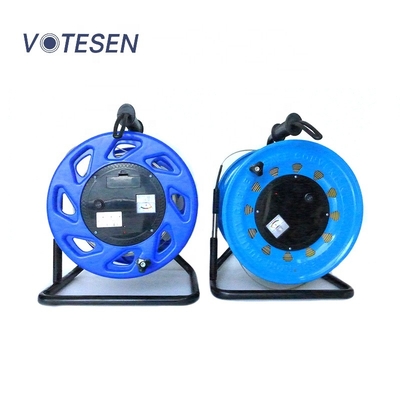

VLS series Water Level Meter is to provide method accurately measuring the depth of water in wells, drilling ,boreholes, standpipes, and tanks. They are sturdy, easy to use and read accurately . The VLS Series WLM is particularly suitable for hydropower project in the underground water level observation or manual inspection of the dam infiltration line , the instrument can be used during construction, also can use as a long-term safety monitoring project.
Product Name | Water Level Meter |
Probe | Stainless Steel |
Color | Blue/ Black/ Yellow |
Model | VLS700/VLS701/VLS702 |
Length | 10m/30m/50m/100m/150m/300m/400m/500m |
Housing Material | ABS/Metallic optional |
Output | Digital sensor |
Probe size | 14X220mm |
Probe part: stainless steel, with water resistance contact points installed inside. When the sensor touch the water surface, it will be connected to the receiving system. When the contact leaves the water surface, it will shut down the receiving system
Steel rule cable part: by steel rule and wire using plastic technology combined for one, that is to prevent steel rule corrosion, and simplify the operation process, measurement and reading more convenient, accurate.
Receiving system: it is composed of sound device, indicator light and peak indicator. The speaker beeps continuously, the indicator lights up, and the peak value indicates the voltmeter.
Our Workshop
production line
Our Team
Packing Details : Packing as standard export package
Delivery Period : 7-10 working days
