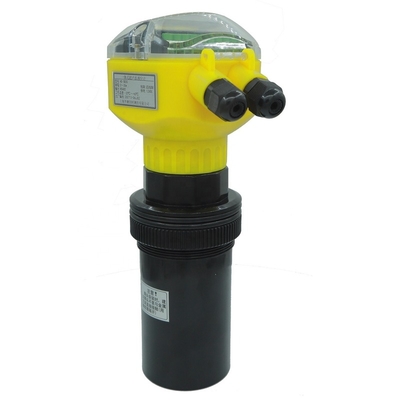

rs485 slot type water proof water tank depth gauge digital liquid level meter ultrasonic level sensor HC-NWY3

1 Piece
MOQ
rs485 slot type water proof water tank depth gauge digital liquid level meter ultrasonic level sensor HC-NWY3
Features Gallery Product Description Request A Quote
Features
Specifications
Grade: Industrial
Warranty: 2 Years
Customized Support: OEM, ODM, OBM, Software Reengineering
Model Number: HC-NWY3
Measuring Range: 0-60m
Output: 4-20mA (RS485 Optional)
Relay Output: AC 220V 8A Or DC 35V 10A
Power Supply: 12V DC
Accuracy: 0.25%~0.5%F.S
Resolution: 3mm Or 0.1%
Working Temperature: -20℃~60℃
Display: LCD Screen
Basic Infomation
Model Number: HC-NWY3
Payment & Shipping Terms
Packaging Details: carton
Product Description
Product Description
Ultrasonic level sensor is using acoustic means Time-of-Flight measuring principle for detecting an object’s distance away from the sensor. Just like a bat, the sensor will generate waves, which at a frequency higher than humans can hear, from 20 kilohertz to one gigahertz. The acoustic wave pulse will hit the targetted object and create an echo reflected back to the sensor. The time taken for the wave to echo back to the sensor provides an estimation of a distance. Knowing that the speed of sound is constant (in an acoustic medium) the detected distance can be relatively consistent.
The material you want to measure with the ultrasonic level transmitter must have a certain density to reflect ultrasonic waves. Sound travels faster through the air than through solids and liquids, so a significant difference in density between the air and your product results in a good signal. It works in both fluids and solids.
The ultrasonic level sensor has a blocking distance where it can’t read properly, so you must include that in your calculations.
Detailed Images



LCD Display Screen
Directly display the data on the screen, get the dynamic changes in real time on site.

ABS Waterproof Interface
Sloping down design can prevent water from entering the housing, and ABS protective interface with good sealing performance can withstand water or even chemical resistant, aging resistant, and high and low temperature resistant.


O-ring with gloove
The probe with a sealing ring can reduce the gap to millimeters during installation, which makes the probe more stable and firm, and the seal with grooves both inside and outside has the shockproof protection and better overall sealing performance.


Totally Enclosed Probe
The double-sealed integrated probe with the physical seal and the integrated sealing shell, can prevent the internal circuit from affecting by moisture to reduce the whole sensor performance.


Imported chip
The chip with imported processor is to ensure the low power consumption, high sensitivity, strong anti-interference ability, and stable signal transmission.

Intelligent Filtering Algorithm
The filtering technology can analyze the reflected echo intelligently without any debugging and other special operations, it is dynamic thinking and dynamic analysis, which can eliminate the possible noise being reflected from the environment, greatly improve the measurement accuracy, especially effectively reduce the interference caused by the fluctuating liquid to keep the data stable in stirred tank.


Transparent Cover
Clearly observe the data, and the waterproof and dustproof design effectively protects the internal circuit.


Automatic Temperature Compensation
Air temperature can affect sound velocity and interfere with ultrasonic measurements. The hotter the air, the faster the sound travels. So, an integrated NTC temperature sensor can help you compensate for this effect, increase the accuracy.
Narrow Acoustic Beam
The narrow acoustic beam with 10° beam angle can keep the energy concentrated, small divergence and strong penetration ability, to realize the large measurement range, and it can also help to reduce the unwanted reflection make the measurement is more accurate.
Specification
Principle
Ultrasonic
Sensor frequency
approx. 40kHz to 64kHz
Medium types
Liquids, solids
Range
5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m optional
Accuracy
0.25%-0.5%
Resolution
3mm or 0.1%
Analog output
4~20mA
Relay output
AC 250V/8A or DC 30V/5A, state programmable
Digital data
RS485, RS232 optional
Power supply
Standard configuration: 24V DC
Optional: 220V AV±15% 50Hz
Transmitter connection wiring
2-wire or 4-wire
Power consumption
4-wire, without relay: 1.9W
4-wire, with relay: 3.1W
2-wire, without relay: 0.72W
Display type
LCD
Sensor material
ABS &PVC or PTFE
Parameter setting
3 Induction buttons
Installation
Thread, Flange, Bracket
Process temperature range
-20°C~+80°C for probe, -20°C~+80°C for display part
Protection grade
IP68 for probe, IP66 for display part
Features
* Easy to mount and deploy *Simple to configure
*The ability to filter false echo *Range of up to 60m
*Non-contact level measurement of liquids and solids
*High accuracy with a wide range of temperature compensation
*Don’t get affected by the physical characters of fluid-like color or shape
*Waterproof, chemical resistant, and robust from microbial contamination
*Several output signals including analog 4-20mA current loop and serial data
Application Fields
river & lake
chemical plant
acid-base pool
tank
water well
wastewater
Certifications
Third-party calibration certificate
ISO9001
ISO14001
ISO45001
