Home /Products/Paint Thickness Tester/Linshang LS233 LS233 Paint Thickness Measuring Unit Automotive Paint Meters Magnetic Thickness Gauge

Linshang LS233 LS233 Paint Thickness Measuring Unit Automotive Paint Meters Magnetic Thickness Gauge

1 Piece
MOQ
$130.00(1 - 9 Pieces) $97.50(>=10 Pieces)
Price
Linshang LS233 LS233 Paint Thickness Measuring Unit Automotive Paint Meters Magnetic Thickness Gauge
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Customized Support: OEM
Model Number: LS233
Power: Electronic
Operation Temperature: -40℃-50℃ (Top Screen); -20℃-50℃ (LCD Screen);
Measuring Principle: Fe:Hall Effect / NFe: Eddy Current
Measuring Range: 0.0-2000μm
Resolution: 0.1μm:(0μm-99.9μm) 1μm:(100μm-999μm) 0.01mm:(1.00mm-2.00mm)
Accuracy: ≤±(3% Reading+2μm)
Unit: μm / Mil
Measuring Interval: 0.5s
Minimum Measuring Area: Diameter = 25mm
Minimum Curvature: Convex:5mm / Concave:25mm
Minimum Substrate Thickness: Fe:0.2mm / NFe:0.05mm
Basic Infomation
Model Number: LS233
Payment & Shipping Terms
Packaging Details: White Paper Box
Product Description
Overview

LS233Car Paint Meter (Dual screen)
paint thickness measurement unit automotive paint meters magnetic thickness gauge

Linshang LS233 automotive paint meter is a low-temperature-resistant car paint thickness measuring instrument equipped with two displays. It can be used normally at an ultra-low temperature of -40℃. The dual-screen design can ensure that users can quickly read when measuring cars at any angle. The paint film measuring instrument adopts the dual principles of Hall Effect and eddy current. It is dual-use for both ferrous (iron) and non-ferrous (aluminum) metal substrate. It can automatically identify iron and aluminum substrates and non-metallic substrates. It is easy to operate, compact and portable. Using this automotive paint meter, car appraisers can easily solve their problems of car evaluation.
car painting gauge car paint thickness detector car paint depth meter
Application
Features
1. The reading is effortless. Adopting the front (LCD) and top (OLED) dual-screen design, the automobile paint thickness can be measured using any angles.

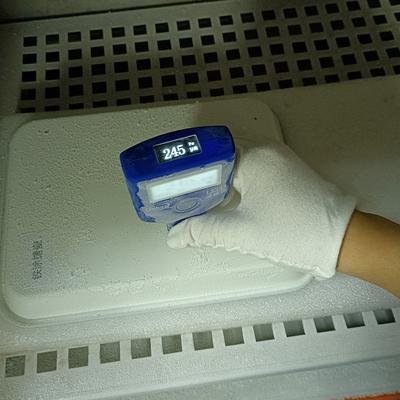

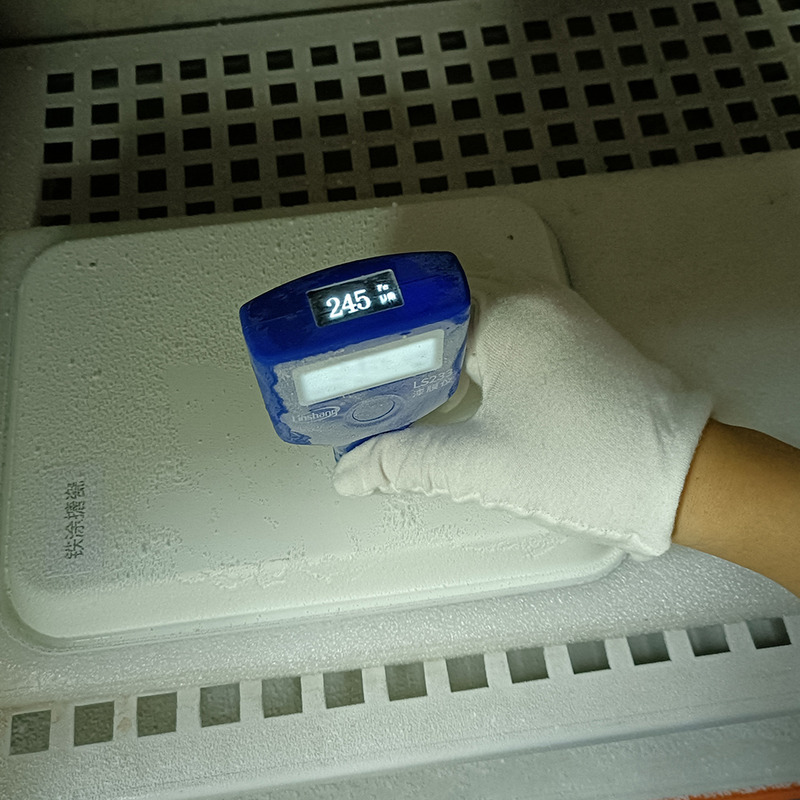

2. Available at low temperature of -40℃. The top is equipped with a low temperature resistant OLED screen, which can display the measured data normally at a low temperature of -40°C. (The working temperature of the front LCD screen is -20℃~50℃)
3. The measurement is fast. 0.5 s measurement interval, sensitive response, fast and efficient. 4. Dual use for both ferrous and non-ferrous mode. The instrument can identify iron and aluminum bodies and non-metallic substrates and automatically switch the measurement mode.
5. Wear-resistant and durable. The probe tip uses high-hardness ruby to ensure a long service life. 6. Accurate and stable. With digital probe and temperature compensation design, the measurement is not easily disturbed and provides excellent accuracy and repeatability. 7. Easy to use. Single-button operation, no calibration required, measurement can be started after simple zero adjustment.
8. "Fe", "NFe", "Fe/NFe" three modes, Chinese and English bilingual. μm/mil can be switched.
paint thickness measurement unit automotive paint meters magnetic thickness gauge
Paramenters
Probe tip
Ruby
Measuring principle
Fe: Hall Effect / NFe: Eddy current
Probe type
Built-in integrated probe
Measuring rang
0.0-2000μm
Resolution
0.1μm:(0μm-99.9μm)
1μm:(100μm-999μm)
0.01mm:(1.00mm-2.00mm)
Accuracy
≤±(3% reading+2μm)
Unit
μm / mil
Measuring interval
0.5s
Minimum measuring area
Ø = 25mm
Minimum curvature
Convex:5mm / Concave:25mm
Minimum substrate thickness
Fe:0.2mm / NFe:0.05mm
Display
Front: 128×48 dot matrix LCD, Top: 128×64 dot matrix OLED
Power supply
2 pcs of 1.5V AAA alkaline battery
Range of operation temperature
-40℃-50℃
Storage temperature range
-50℃-60℃
Host size
100*60*24mm
Weight
80g
Structure
Packing Details
Qualification and Standards
* GB/T 4956-2003 Non-magnetic Coatings on Magnetic Substrates-Measurement of Coating Thickness-Magnetic Method
* GB/T 4957-2003 Non-conductive Coatings on Non-magnetic Basis Metals-Measurement of Coating Thickness-Eddy Current
* DIN EN ISO 2808 Paints and Varnishes-Determination of Film Thickness
* JJG-818-2005 Verification Regulation of Magnetic and Eddy Current Measuring Instrument for Coating Thickness
Recommend Products
Company Profile
Shenzhen Linshang Technology Co., Ltd. (www.linshangtech.com) was established on June 16, 2008. The company adheres to independent design, research and development, production and sales of various measuring instruments. Builds its own brand. "Linshang" trademark successfully in 2010, At present, company have obtained 17 national patents and national high-tech enterprise certificates.
At present, the company's instrument are mainly divided into four categories: solar film measurement, optical transmittance, ultraviolet measurement, gloss and coating thickness measurement. Products include: Solar Film Transmission Meter, Spectrum Transmission Meter, Light Transmittance Meter, UV Energy Meter, UV Light Meter, Glass Thickness Meter, Gloss meter, Coating thickness gauge, Vacuum coating online thickness monitor.
Trademark and Knowledge Product Management System
National High-tech Enterprise Certificate
Software Copyright Registration Certificates
17 National Patent Certificates
CE Certificates for Multiple Products
FAQ
Q1: What’s your warranty?
A1: We provide 1 year warranty.

Q2: May I buy sample from you?
A2: Yes, you are welcome to place sample order to test our superior quality and service.

Q3: What about the quality of your products?
A3: We provide unrivaled quality-very rigorous testing process for incoming quality control, input process quality control, and final quality control for every piece. We follow QC test procedure to ensure the quality.

Q4: Do you have after-sales service?
A9: Yes, our instrument have professional After-sales Dept. If you have any technical problem or question with our goods, welcome to contact us.

Q5: Are you just trading company or facture?
A5: We are professional inspection instruments manufacturer, we can support you with the most competitive price, unrivaled quality and services.
car painting gauge car paint thickness detector car paint depth meter
