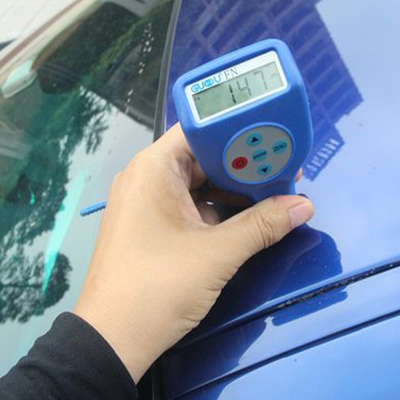

Digital Coating Thickness Gauge 0-1500um/0.1um Paint Thickness Tester Film Thickness Meter Fe GTS8102

1 Piece
MOQ
$160.00(>=1 Pieces)
Price
Digital Coating Thickness Gauge 0-1500um/0.1um Paint Thickness Tester Film Thickness Meter Fe GTS8102
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: GTS8102
Measuring Range: 0~1500um
Accuracy: 1~3%n
Resolution: 0.1 Um(0-99.9um) / 1 Um(>100um)
Power Supply: 2*1.5V AA Batteries
Weight: 99g(without Battery)
Dimension: 102x66x24mm
Operateing Conditions: Temp: 0 - 50C And Humidity: < 80%
Minimum Measurement Area: 5mm
Minimum Sample Thickness: 0.3mm
Meets Standards Including: ISO-2178, ISO-2360, DIN, ASTM & BS
Basic Infomation
Model Number: GTS8102
Payment & Shipping Terms
Packaging Details: plastic case.carton package size :28*24*10cm .weight:1kg . 1piece gauge /1 package .
Supply Ability: 100 Piece/Pieces per Day
Product Description
Related Product
Measuring Range
0-1250µm (0-1.25mm) or 0-50mil
Resolution
0.1µm (0-99.9 µm) and 1µm (over 100 µm)
Color
Blue ,Black ,Red ,Yellow
Application
measuring coating thickness
Accuracy
±1-3% (±2.5µm or 0.1mil - whichever the greater)
Certification
CE, RoHS
Power supply
2 x 1.5V AA Batteries
Warranty
1 years
Item Name
coating thickness gauge
Minimum Measurement Area
5mm
Minimum Sample Thickness
0.3mm
MOQ
1 Piece
Model Number
GTS8102
Operating Conditions
Temp: 0 - 50ºC and Humidity: < 80%
Weight
99g ( including batteries)
Dimensions
102 x 66 x 24mm

Features


1.Thickness measurement using both Magnetic Method and Eddy Current Method to measure the non-magnetic coating on a magnetic metal substrate, or non-conductive coating on non-magnetic metal substrate.

2.Single-point or two-point method could be used to correct probe system deviation, in order to ensure the

accuracy of the device in the process of measuring.

3.Fast automatic identification of iron and non-iron substrate.

4.Power voltage indicator.

5.Speaker beep while operating.

6.Power-off automatically when idle; manually power-off available.

7.Negative display function to ensure the accuracy of zero point calibration.

8.Ultra-low power consumption, less than 10 μA in standby mode.

Detailed Images
Application
Our Company

Guangzhou GuoOu electronic technology Co.,ltd. by virtue of integrity, strength and product quality, obtains the industry wide acceptance.We in line with to the clients' interests first, create value for customers, contribute to social progress, national prosperity business philosophy, walk every step forward honestly, earnestly and hardly. Keep providing high quality products and services for all customers. Warmly welcome friends from all walks of life visit, guidance and business negotiation to Guangzhou GuoOu electronic technology Co.,ltd.

Certifications
Packing & Delivery
Our most professional packaging
                 Plastic case
And international transport cooperation
Our Service

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.


Buying Guides

Step 1:Find the model(s) you want,and tell us your detailed requirements;

Step2:Proforma Invoice confirmed, the order will be arranged upon receipt of your payment;

Step3:Confirm and ship the goods, then tracking number will be sent to you promptly.

Step 4:We will help to track your goods until you receive them safely.



Whenever you want something from us,you can find me by the following methods:

Contact Person:Jennifer Chang

MP/WhatsApp: 86-18926206046

Skype:guoouinstrument

Trademanager: guoou

QQ: 2881995052

FAQ

Q1: Are you a factory or trading company?

A1:We are a Professional Precise measurement instrument MANUFACTURER with a plant in HuaDu, GuangZhou.

Q2:Can I customize the measurement range/color/package and other details?

A2:Absolutely yes, OEM and ODM orders are welcome.We may charge you the molding cost firstly,and after you placed the order,

return the cost to you.

Q3:What is your MOQ ? Do you accept quantity that I like to order?

A3:For our most models,we don't have a MOQ.Any quantity is available,just share your detailed requirements with me,and let's

take the chance to do something together.

Q4:Can I get a sample ? is it free ?

A4:Just tell me your model choice and detailed requirements,if it won't cost us much,free sample can be provided.

Q5:How many days you need to provide the sample or order?

A5:Sample can be provided within 2-3 working days,and order within 5-7 working days.For customized sample or order,more days

are needed.

Q6:Where is your factory?May I take a visit to it?

A6:Our factory is located in HuaDu, GuangZhou, quite near the new BaiYun International Airport. You are always welcome here.
