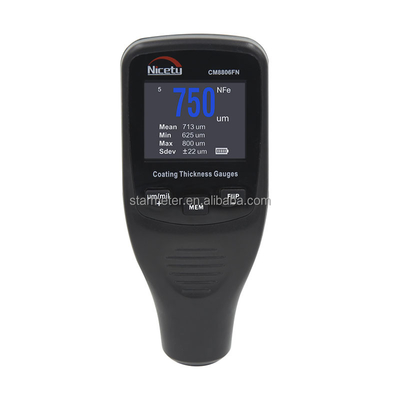

Coating thickness gauge meter Fe/NFe 2 in One CM8806FN China supplier
-Large and clear TFT Screen(160x128TFT)
-Auto recognition of the substrate material (Fe or NFe)
-Metric/imperial switchable (mil/um switchable)
-Single / Continue measurement selectable
-Flip display
-99 data memory
-Simultaneously displays 5 readings: (easy for data analysis and comparison)
Measuring Reading , Average Reading , Max. Reading , Min. Reading and Standard Deviation.
Range: 0 - 1250um; 0 - 50mil (Max. add to 2000um/80mil)
Resolution: 1um, 0.1mils
Accuracy: ± (3%+2um), ± (3%+0.1mils)
Response time: 0.6 sec
Sensor type: Fe & NFe 2 in 1
Large and Clear TFT Screen(160x128TFT) + Flip Display
Easy Reading at any condition and angle
Battery: 1.5Vx2 AAA size
Dimension: 119x52x28mm
Weight: 0.56kg
Packing: carrying case, substrate blocks (steel x 1pc, Aluminumx1pc),
Calibration foils x 1set, English manual
Fe type gauge is good for the thickness of non-magnetic coating on Ferromagnetic base (e. G. Iron, nickel and more), like plating layer, lacquer layer, porcelain enamel layer, phosphide layer, copper/aluminum and some alloy tiles papers and others.
NFe type probe for measuring the thickness of any non-magnetic coating on Non-Ferromagnetic metal base (aluminum, brass, stainless steel, etc. ), like anodizing, varnish, paint, enamel, plastic coating, power layers, and others.
This handheld car paint thickness gauge meter CM8806FN is used to quickly and accurately measure thickness of coating or plating on metal surface. It not only indicates thickness of coating or plating but also automatically identifies which base material is used (Fe means magnetic metals such as iron & steel; NFe means non-magnetic metals, such as aluminum, alloy & non-magnetic stainless steel). It is applicable to measure various coating or plating, including non-magnetic painting, ceramic, enamel, plastic, rubber coating on magnetic base materials such as iron and steel, non-ferrous metal plating such as nickel & chromium, anticorrosive coating in chemical and petroleum industry, non-conductive painting, plastic coating and anodic oxide film on non-magnetic conductive devices, such as on aircraft or spacecraft, vehicle, home appliances, al-alloy door & window as well as other aluminum ware, and conductive coating or plating as long as the conductivity of coating or plating is at least 3 times less than that of base materials (such as copper with chromium plating).
Starmeter Instruments Company.,LTD ,located in Shenzhen Guangdong, was established in 2002. Our company is a hightech enterprises based on research and development, manufacture and distribution of instruments and meters, specialized in promotion and distribution of the home made instruments in the international market.
Our main products lines are non-destructive testing and environment measurement products,car paint thickness gauge meter, Laser Distance Meter ,Infrared Thermometer,Anemometer, Tachometer , Sound Level Meter , Lux meter ,Humidity Meter and so on.All of our products have CE, ROHS certification, 80% of the products were sold to more than 30 Western countries and another 20% to Asian countries and home.Our "NICETY" brand has taken credit for high accuracy,good durability and elegant design for years...
Why would you choose us?
We offer factory price products
We accept small quantity & wholesale orders (NO MOQ)
We keep our stocks available for anytime order
We offer the lowest shipping cost via DHL, FedEx or UPS
Super customer support: post sale support that responds within 48 hours
Wide range of car paint thickness gauge meter
