Home /Products/Pipe Thickness Gauge/Car Paint Tester Coating Thickness Gauge Paint Controller Coating Thickness Gauge Measuring Fe Digital Coating Thickness Gauge 150X50.5X29mm

Car Paint Tester Coating Thickness Gauge Paint Controller Coating Thickness Gauge Measuring Fe Digital Coating Thickness Gauge 150X50.5X29mm

1 unit
MOQ
Car Paint Tester Coating Thickness Gauge Paint Controller Coating Thickness Gauge Measuring Fe Digital Coating Thickness Gauge 150X50.5X29mm
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Years
Type: Handheld
Customized Support: OBM
Model Number: ETG12F1
Product Name: Car Paint Thickness Tester Pen ETG12F1
Test Method: Magnetic Induction
Data Memory: 500 Readings
Display: Graphic LCD With Backlight
Working Environment: Temperature: 0°C~+40°C Humidity: 20%~90%
Power Supply: 3 AAA Dry Batteries
Design: Integrated Design Of Sensor And Host
Color: Gray
Size: 150X50.5X29mm
Weight: 110 G
Basic Infomation
Model Number: ETG12F1
Payment & Shipping Terms
Product Description
Products Description

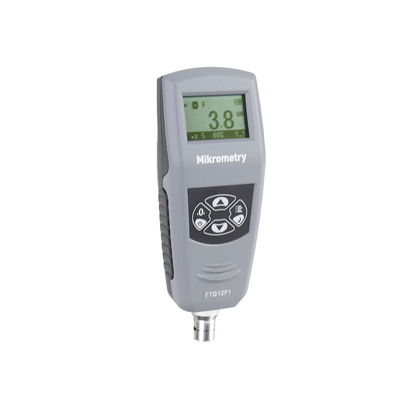

Mikrometry paint coating thickness tester ETG12F1 is an economical choice that provides the hi quality measure of the paint thickness of car. This portable meter designed for noninvasive coating thickness measurements. You'll be able to use dual technology that provides automatic recognition of ferrous (magnetic induction measurement) substrates.

Features:

* Very compact size with integrated probe
* Magnetic induction method (ISO 2178, ASTM D7091), measurement of non-magnetic coatings on magnetic substrates
* Data memory is up to 500 readings
* Ready to measure immediately without calibration
* Easy to perform zero-point correction provides correct measurement results for measuring applications with little changes in
shape and substrate material
* The one-point calibration function allows for an adaption in cases of severe changes in shape or substrate material and
enables high-precision measurements in selected measurement ranges
* Statistic function allows for evaluation of a measurement series and display of the most significant characteristic
statistical values.
Product Paramenters
Test Method
Magnetic induction
Measuring Range
0-1250μm (0~50 mil)
Resolution
0~999 μm:0.1μm
≥1000μm：1μm
Accuracy
0~100：±2.0μm
101 ~ 1250μm: ≤ 2.5 %
Data Memory
500 readings
Display
Graphic LCD with backlight
Operating Temperature
0 ~ 50°C
Dimension
150X50.5X29mm
Weight
170g
Accessories
Thickness gauge, Substrate, Certification foils set, Charger
User’s manual, Manufacturer’s certificate.
Packing & Shipping
1. We guarantee to ship goods out within 3~5 working datys after payment confirmation except holiday.
2. We ship by DHL, FEDEX, TNT and so on, according to your choice when placing orders.
Warranty
1. All items have 1 year guarantee. If your purchase do not meet mechantable quality, fitness for purpose or match the
description, we can make sure your issues are resolved.
2. For wrongly-shipped items, please contact us in 48 hours after delivery. We will arrange to deliver the correct items or return all your payment.
3. For defective or faulty products, please take photos or videos, we would resend or refund after confirmation.
Company Profile
About Us
Mikrometry Instrument Limited is a designer and manufacturer of height gauge, force and torque measurement products, portable
hardness tester and coating thickness gauge. Since our founding in 2007, our products have proven themselves in numerous
applications at companies in the automotive, machinery, electric product, film, medical device, textile, pharmaceutical, cosmetic,
packaging, food, and many other industries. We also offer optimized solutions for special requirements.

R & D

Mikrometry have more than 20 R& D engineers, and our products have more than 100 patents for inventions. From PCBA to firmware,
ID/MD. All the sensor and products are assembled and produced by Mikrometry.

Integrated Manufacturing

Mikrometry products (Include sensors and key devices) are done in-house. Integrated manufacturing helps ensure high quality
standards and allows us to maintain extensive stock for quick shipment.

Service & Support

We offer 7 x 24 hours online. And we have a technology team with more than 10 years experience, good technical skill, English
communication and project management.

FAQ:

Q1. You are manufacturer or trading company? A: We are manufacturer and exporter, our price is reasonable. Also we have great sales team providing professional service. Q2. Do you provide OEM/ODM services? A: We can do OEM/ODM. Q3. How does your factory do regarding quality control? A: Quality is priority. we always test one by one before produce or finished. We have got the CE, RoHS, so don't worry about quality
