Home /Products/Handheld Thickness Gauge/UM6500 Handheld Ultrasonic Thickness Gauge For Metal Gauge UM6500 Thickness

UM6500 Handheld Ultrasonic Thickness Gauge For Metal Gauge UM6500 Thickness

1 Unit
MOQ
$85.00(1 - 19 Units) $80.00(20 - 49 Units) $75.00(>=50 Units)
Price

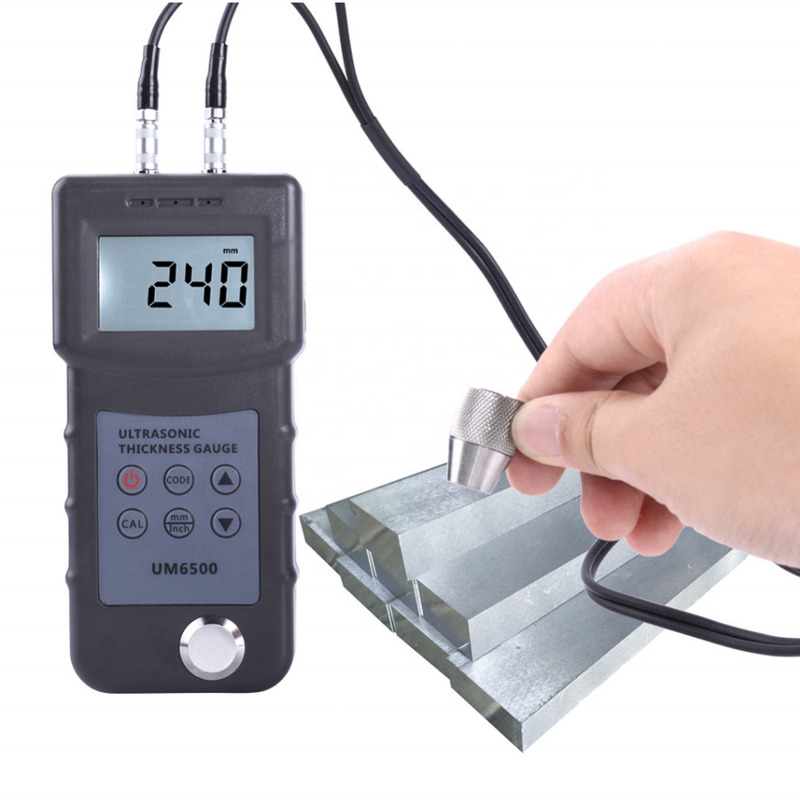

UM6500 Handheld Ultrasonic Thickness Gauge For Metal Gauge UM6500 Thickness
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: UM6500
Power: Electronic
Principle: Ultrasonic
Measuring Range: 1.0-245mm; 0.05-8inch
Accuracy: ±(0.5%H+0.1)mm
Resolution: 0.1mm
Operation Temperature Range: 0 ~ 45 °C (32 ~ 104 °F)
Display: Digits LCD Backlight
Power Supply: 4*1.5 AAA Size (UM-4) Battery
Dimensions: 140*60*22mm
Basic Infomation
Model Number: UM6500
Payment & Shipping Terms
Packaging Details: professional plastic pack
Product Description
Product Description
UM6500 ultrasonic thickness gauge application Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc.

UM6500 widely used in industries of petroleum, shipbuilding, power station, and machine manufacturing.

The measuring materilas include 11 types: steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron

Features
High resolution measurement.
Probe automatic zero calibration for system error correction.
Status indicator of the coupling and low battery.
Auto sleep and auto power off function to conserve battery life.
Humanized shape design, compact and portable, Can be used in harsh environment.
Technical parameter
UM6500
Principle
Ultrosonic
Measuring range
1.0-245mm/0.05-8inch
Accuracy
±(0.5%H+0.1)mm
Resolution
0.1mm
Materials code
11 types
Operating conditions
 0-+45℃(32℉-104℉); ≤90%RH
Display
Digits LCD backlight
Working temperature
-30-+80℃,-30-+150
Power supply
4x1.5 AAA size (UM-4) battery
Dimension
140×60×22mm
Weight
1Kg
Our Company

Office

Workshop

Plant


Warehouse

FAQ

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock.
